HVAC – AC System Replacement in San Jose, California.
Labor includes:

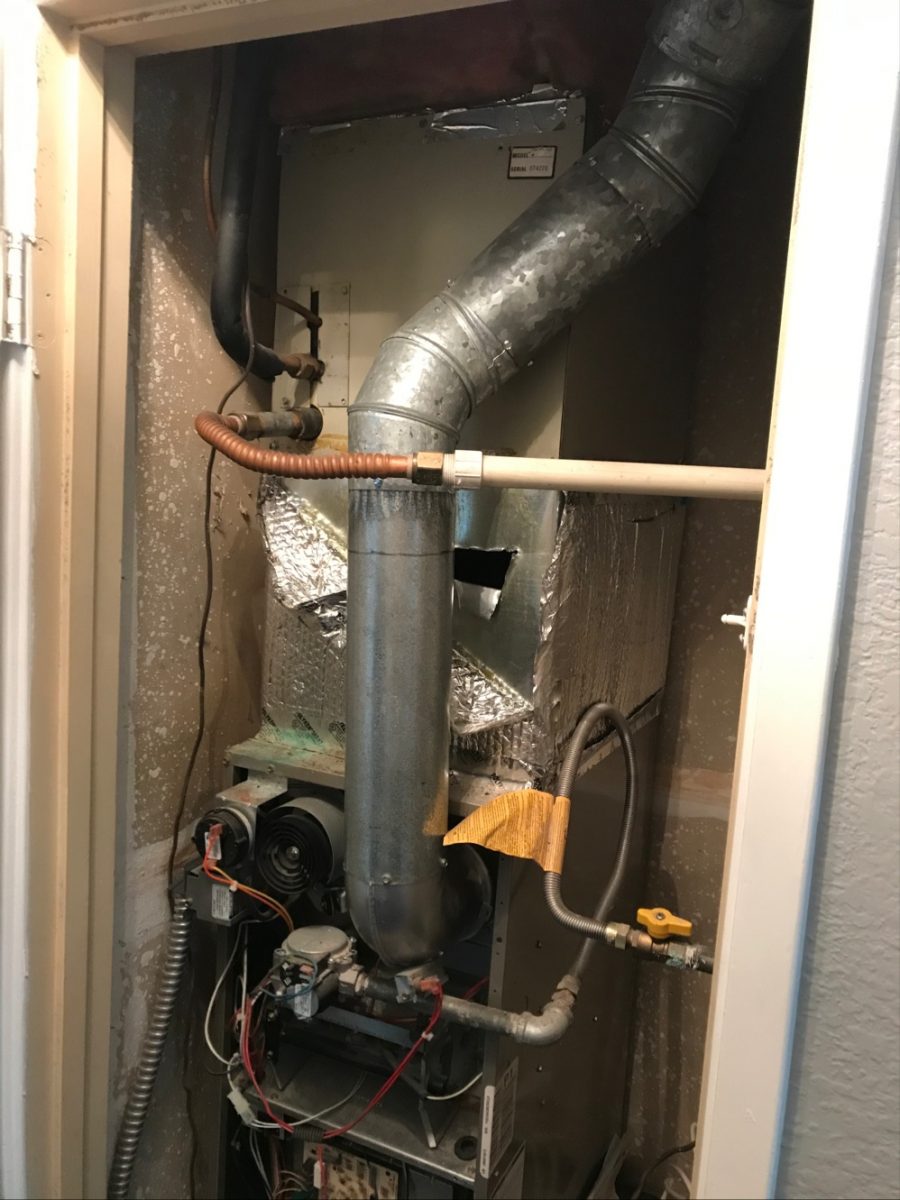

• Old system dismounting, haul away and recycling

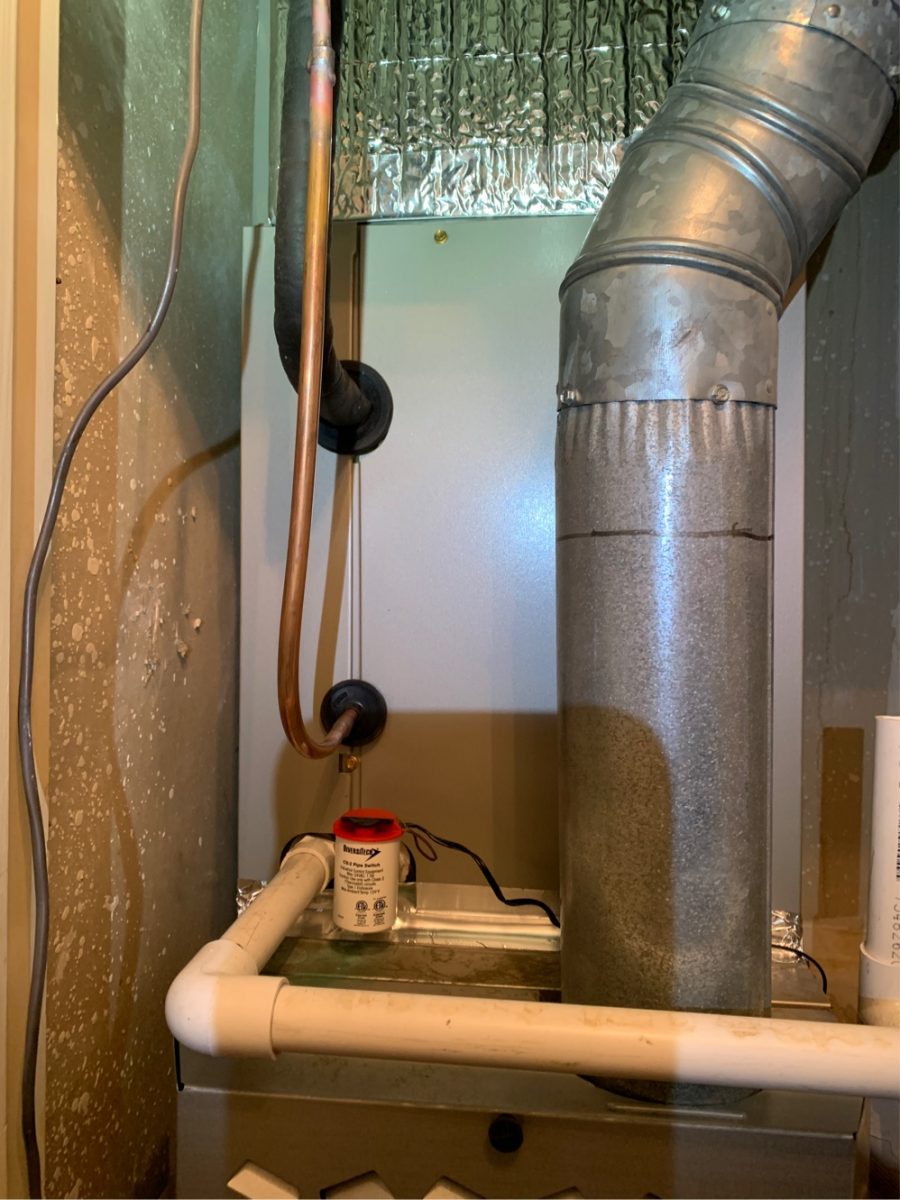

• New evaporator coil installation according to the building standards

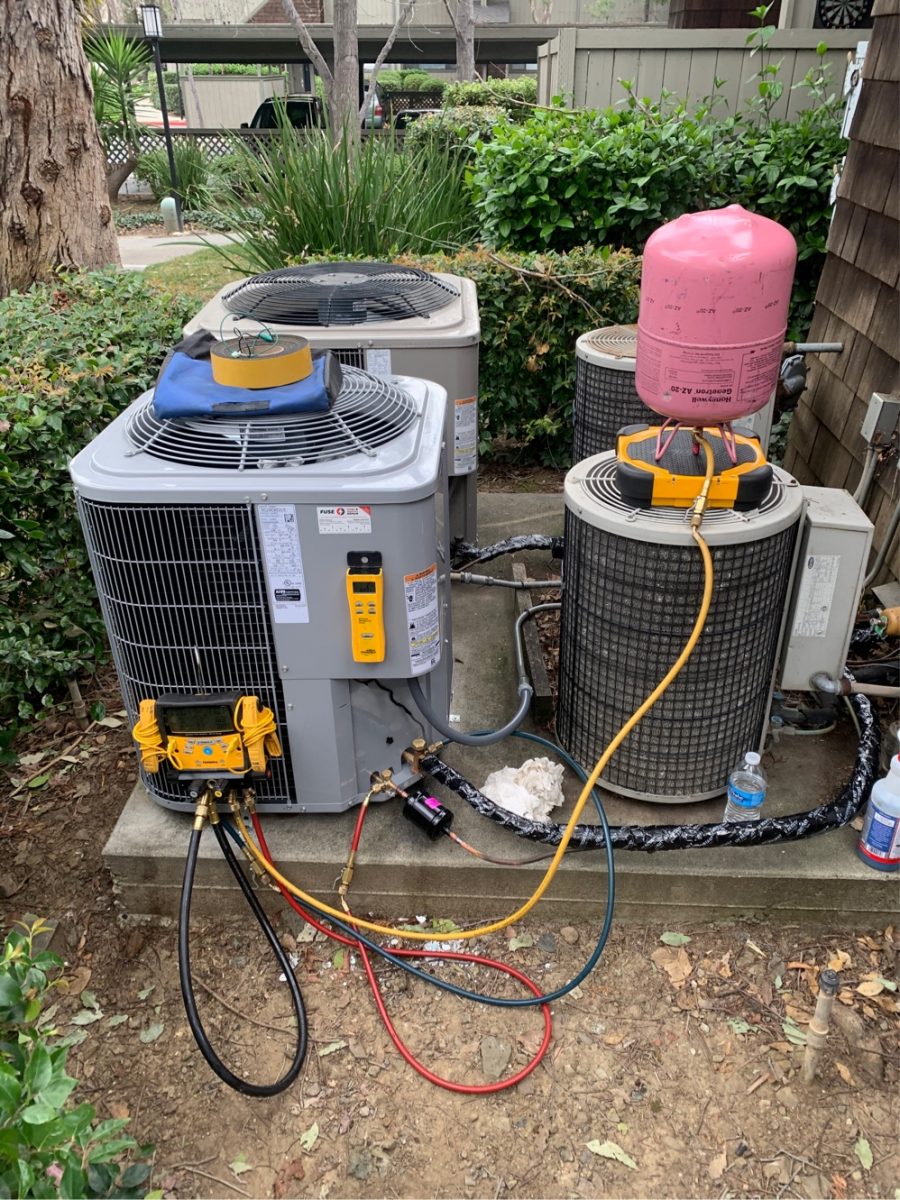

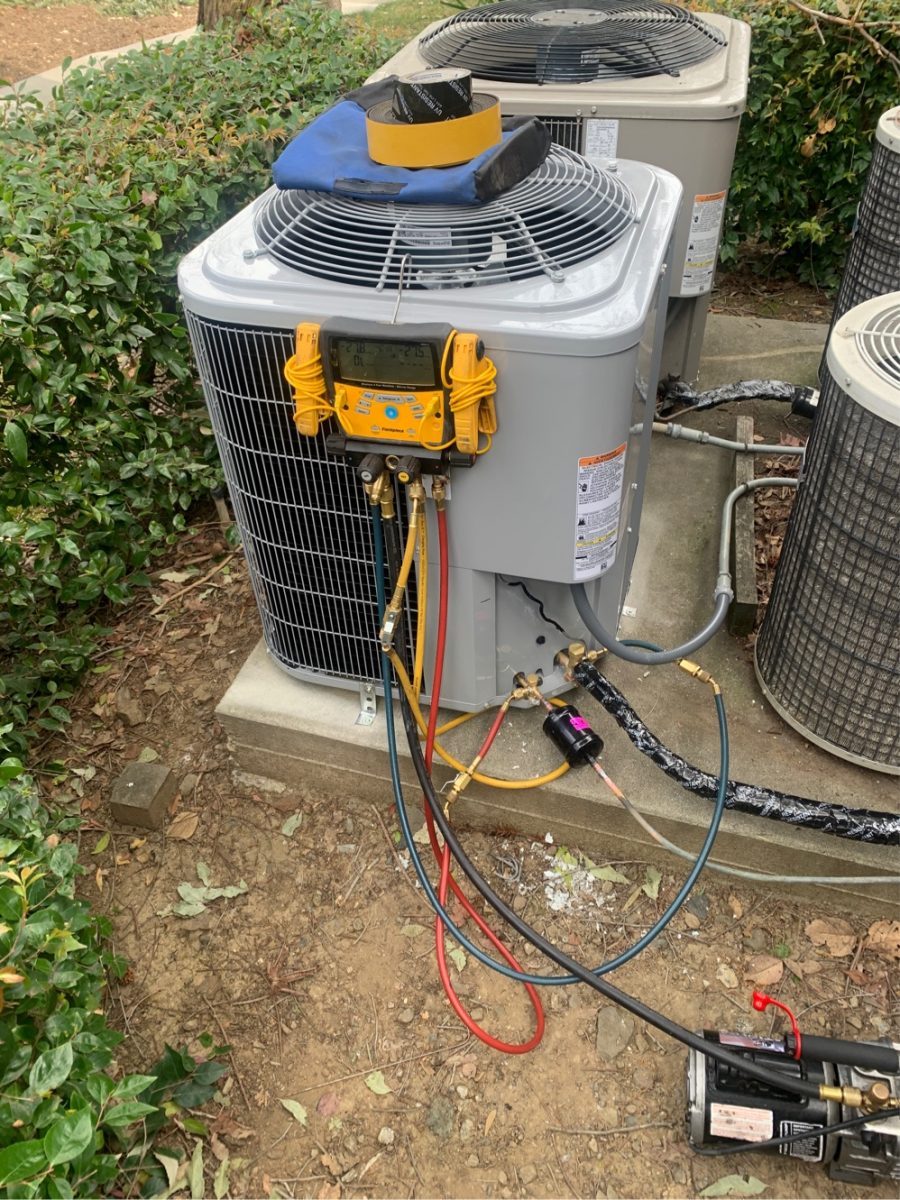

• New outdoor condensing unit installation according to the building standards
• 2 Years Warranty for labor

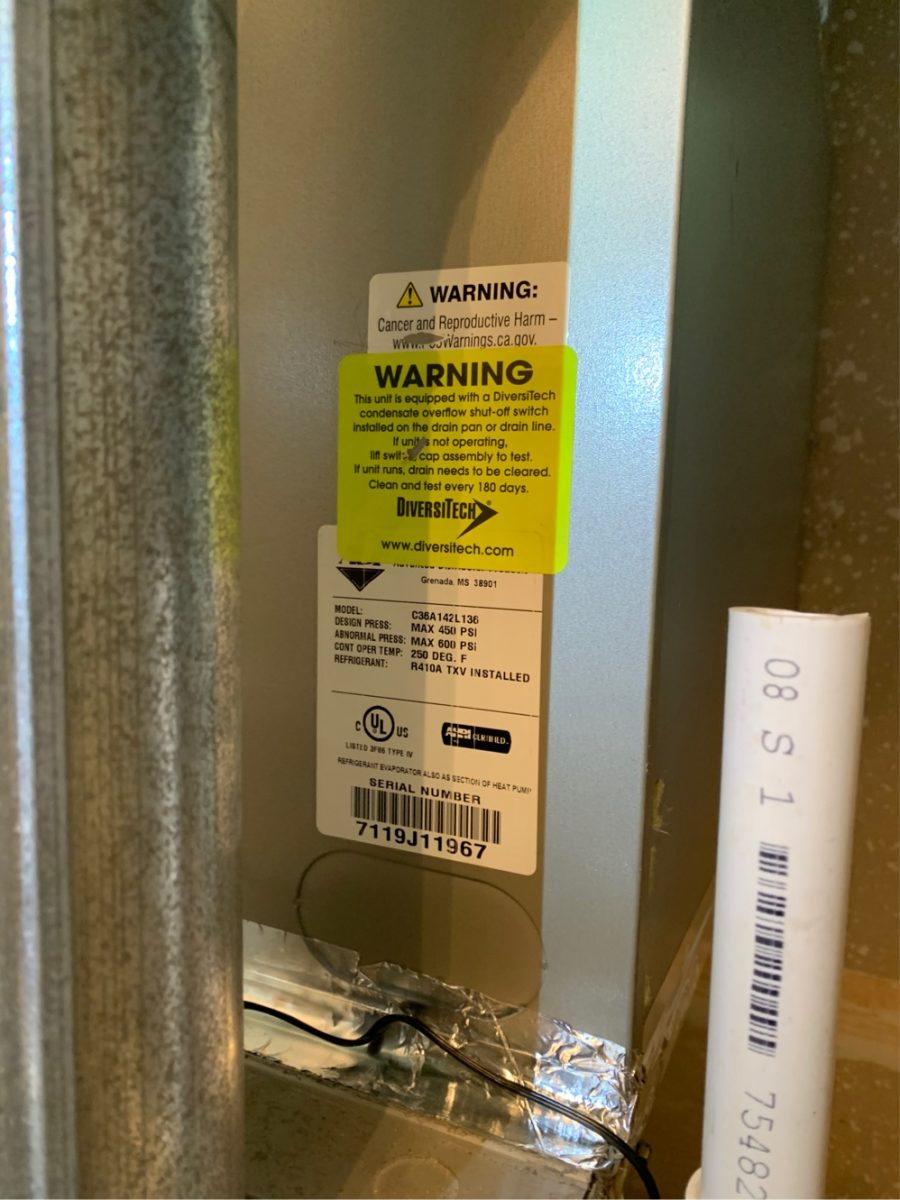

COILS – “Carrier” C36A142L136 ADP Up/Down Coils Puron Refrigerant
Product Data:
ADP C**H Models…
– Easy Glide™ one piece panel for full access and easy removal
– ETL lab tested 1.25% A-Coil air leakage
– UV light knock-outs for easy installation.
– Microban® additive inhibits the growth of mold and mildew on the drain pan
– Coils are air pressure tested, Helium leak tested, sealed and charged with dry air
– 10 year parts only limited warranty to original homeowner in California
– Aluminum tubes and fins
– 10 year parts only limited warranty to original homeowner in California
Coil Efficiency : Standard Efficiency
Face Velocity : 337
Wet Coil Pressure Drop : 0,39
Weight (lbs) : 35
Dimensions
W x D x H
(inches) : 14.25 x 21.0 x 18.5
Materials – Standard materials needed for AC replacement
• Supply air duct plenum
• Installation double foil bubble wrap
• Duct paint, screws, foil tape and etc.
• Air filter holder
• Duct insulation (duct board)
A/C CONDENSERS – “Carrier” 24AAA524A003 24AAA5 – Comfort Series 14-16 SEER Air Conditioner 2TON
Product Data:
– Microtube Technology refrigeration system
– Sound level as low as 71 dBA

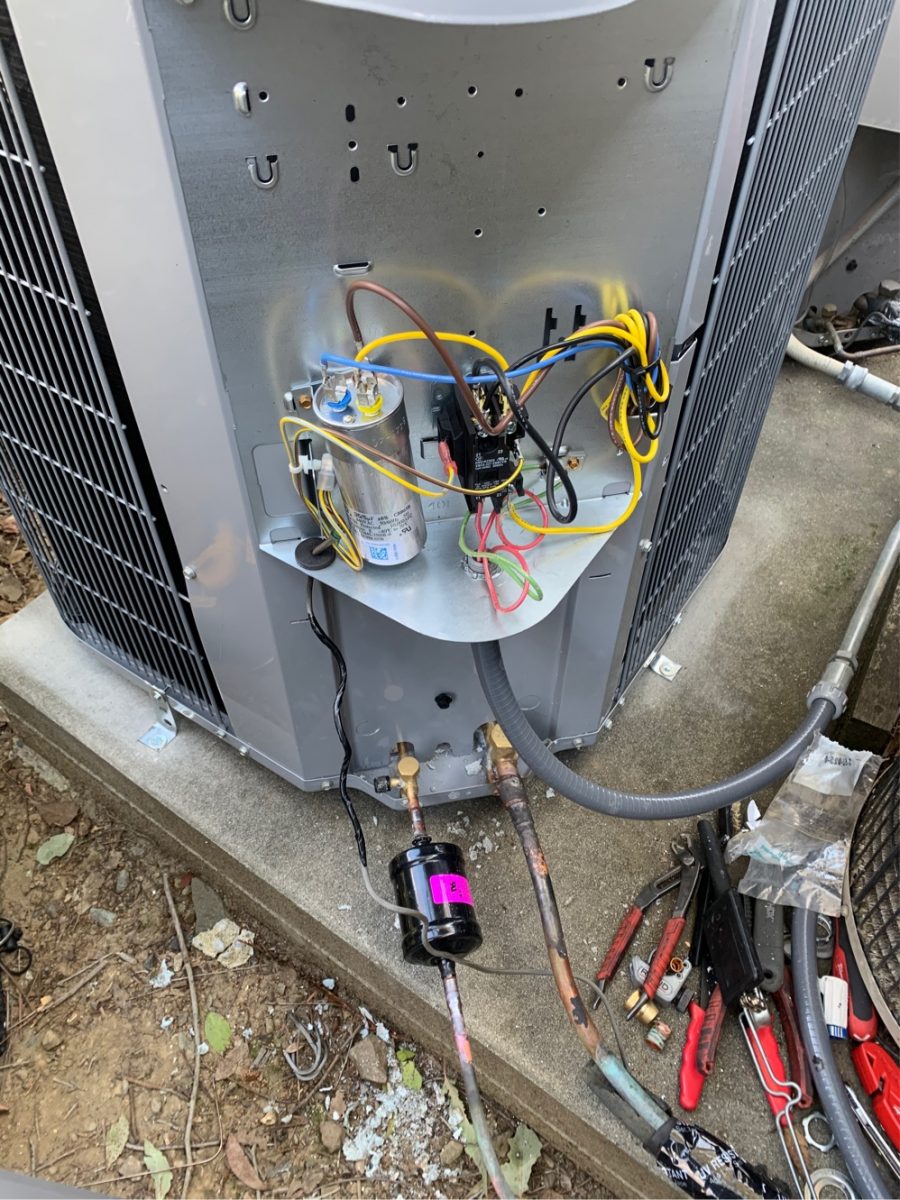

– Field installed 8 cu-in filter drier
– Front-seating service valves
– Internal pressure relief valve and thermal overload
– Dense wire coil guard
– Long line applications up to 250 feet total equivalent length
– Limited parts-only warranty in California for a residential application:
– Original owner = 10 years on all parts
– Subsequent owner = 5 years on all parts
Cooling Capacity : 24000
Voltage and Phase : 208/230-1
Fuse Size : 20
Suction Line (inches) : 3/4
Sound Level (dBA) : 71
Shipping Weight (lbs) : 148
Dimensions L x W x H (approx. inches) : 26 x 26 x 32
